SCR Driver Board – Phase Angle with Current Limit | PCM-1P

SCR Control Board Description:

The PCM-1P provides linear phase angle of SCRs for resistive and inductive loads. The phase angle gate drive output is proportional to the command input which can be dip switch selected for several industry standard inputs. The gate drive current is suitable for larger SCRs.  Standard default soft start times are 0.5, 1, 4 seconds (select via dip switch).

SCR Driver Boards Features:

• True DC SCR gate drive

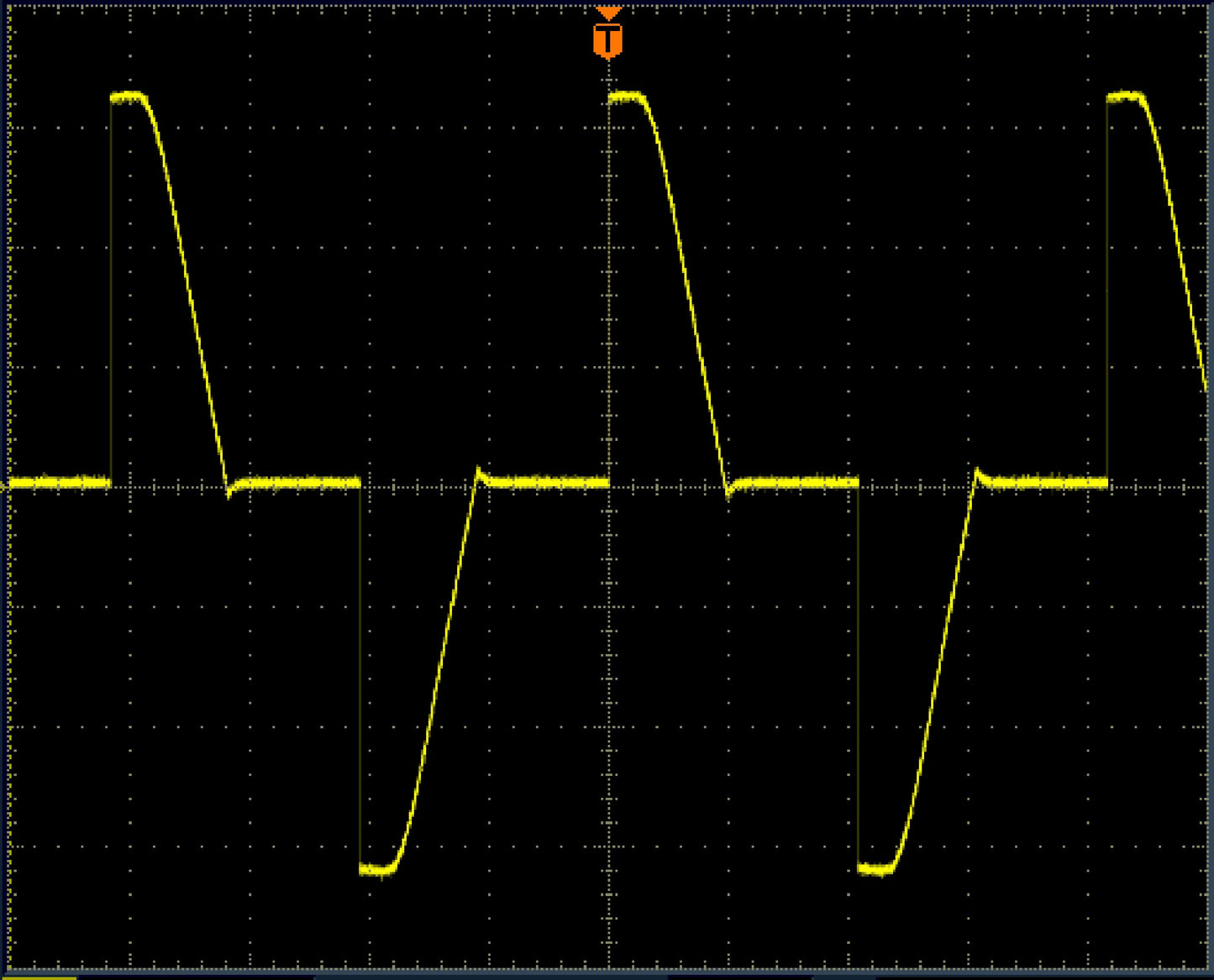

• Low DC imbalance for inductive loads
• Phase angle control w/current feed back
• 4-20mA, 0-10V, 0-5V, Pot, PWM Inputs

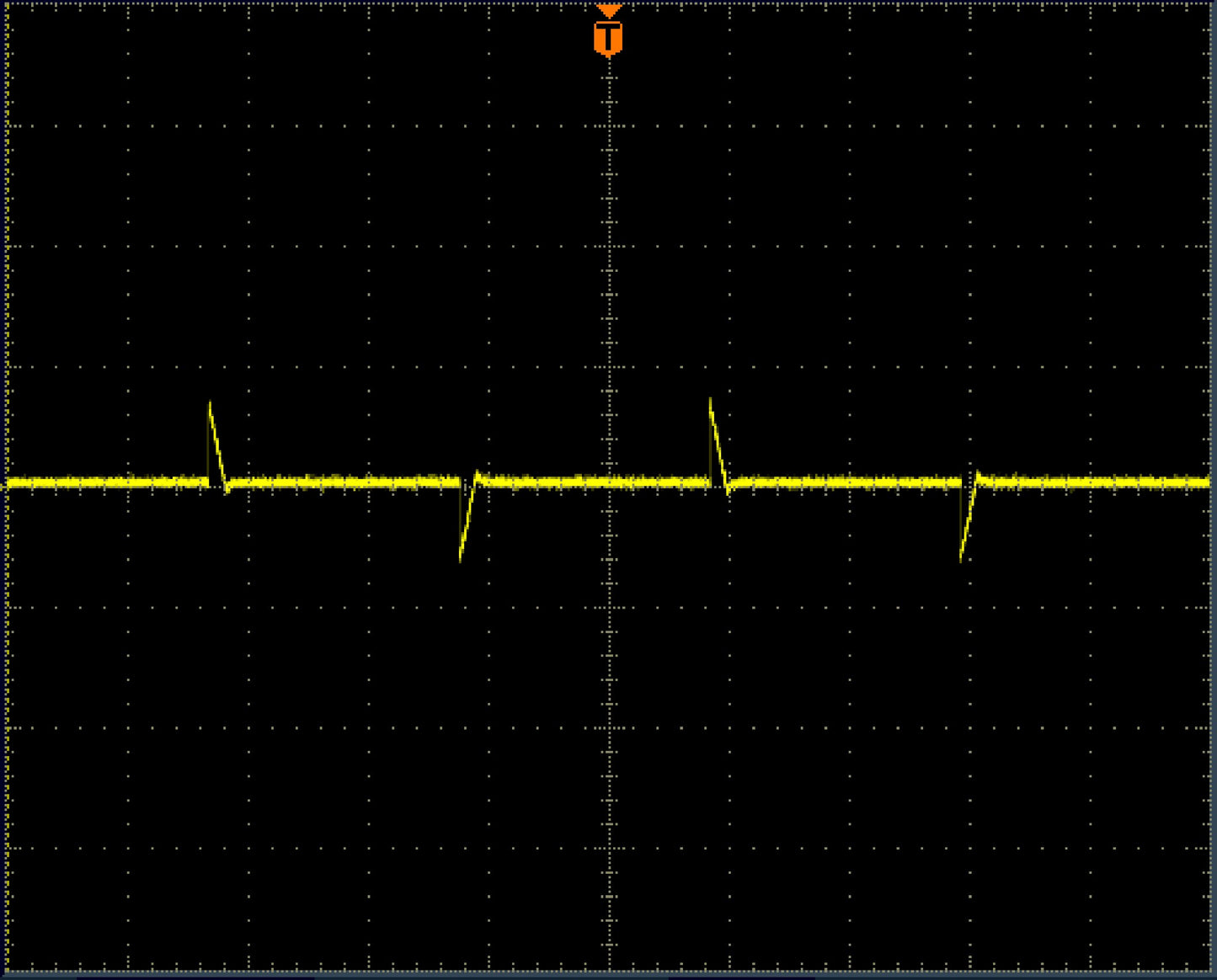

• Soft start / change for high inrush loads
• 50/60Hz and 100 – 265VAC operation
• Voltage and current limit
• LED power,  output and limit indicators
