Peltier H-Bridge Amplifier | TCH1560
Peltier H-Bridge Amplifier | TCH1560
Regular price
$77.00 USD
Regular price
Sale price
$77.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
H-Bridge Description:
The TCH1560 TEC H-Bridge provides an efficient solution for interfacing standard heat/cool temperature controllers to TECs (peltier modules). The H-Bridge circuit provides both positive and negative polarity control of Pelteir modules via the heat and cool inputs. The optically isolated and control inputs can be driven from standard 5-12VDC temperature controller outputs.
- Use with Common Temperature Controls
- Controls TECs (peltier)
- Up To 2KHz PWM Control
- Controls in Heat and Cool Directions
- 12-60VDC H-Bridge Voltage
- 15A Output Current
- Transient Protection
- Optically Isolated Control Inputs
TCH1560-XX | Tec H-Bridge 15A 60V |
TCH1560-XX | 12V or 24V |

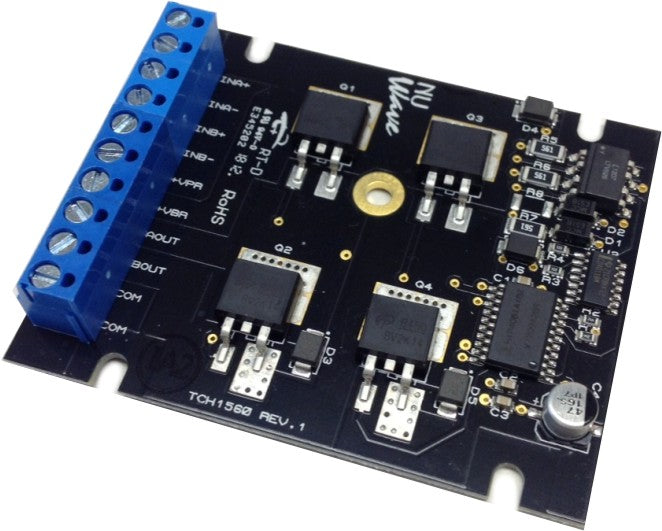

![TEC h bridge](http://nuwaveautomation.com/cdn/shop/products/TCH1560-1.jpg?v=1676338751&width=1445)
![h bridge dimensions](http://nuwaveautomation.com/cdn/shop/products/peltier-h-bridge-wiring-dimensions.jpg?v=1676983487&width=1445)
![h bridge wiring](http://nuwaveautomation.com/cdn/shop/products/tec-h-bridge-wiring.jpg?v=1676983487&width=1445)
